一、MHA簡介
二、試驗環境及要求
三、部署MHA
四、測試MHA集群功能
一、MHA簡介
MHA（Master High Availability）目前在MySQL高可用方面是一個相對成熟的解決方案。在MySQL故障切換過程中，MHA能做到在0~30秒之內手動或自動（結合腳本）完成數據庫的故障切換操作，并且在進行故障切換的過程中，MHA能在最大程度上保證數據的一致性，以達到真正意義上的高可用性。
該軟件由兩部分組成：MHA Manager（管理節點）和MHA Node（數據節點）。MHA Manager可以單獨部署在一臺獨立的機器上管理多個master-slave集群，也可以部署在一臺slave節點上。MHA Node運行在每臺MySQL服務器上，MHA Manager會定時探測集群中的master節點，當master出現故障時，它可以自動將最新數據的slave提升為新的master，然后將所有其他的slave重新指向新的master。整個故障轉移過程對應用程序完全透明。
二、試驗環境及要求
1、linux系統版本：cento7.2
[root@jev71 ~]#cat /etc/centos-release CentOS Linux release 7.2.1511 (Core)
2、mysql版本：5.5
[root@jev71 ~]#mysql Welcome to the MariaDB monitor. Commands end with ; or g. Your MariaDB connection id is 12 Server version: 5.5.44-MariaDB-log MariaDB Server Copyright (c) 2000, 2015, Oracle, MariaDB Corporation Ab and others.
3、keeplived版本：1.2
[root@jev71 ~]#keepalived -v Keepalived v1.2.13 (11/20,2015)
4、mha4myqsl版本：0.56
[root@jev74 ~]#ll -rw-r--r--. 1 root root 87119 Nov 9 2015 mha4mysql-manager-0.56-0.el6.noarch.rpm -rw-r--r--. 1 root root 36326 Nov 9 2015 mha4mysql-node-0.56-0.el6.noarch.rpm

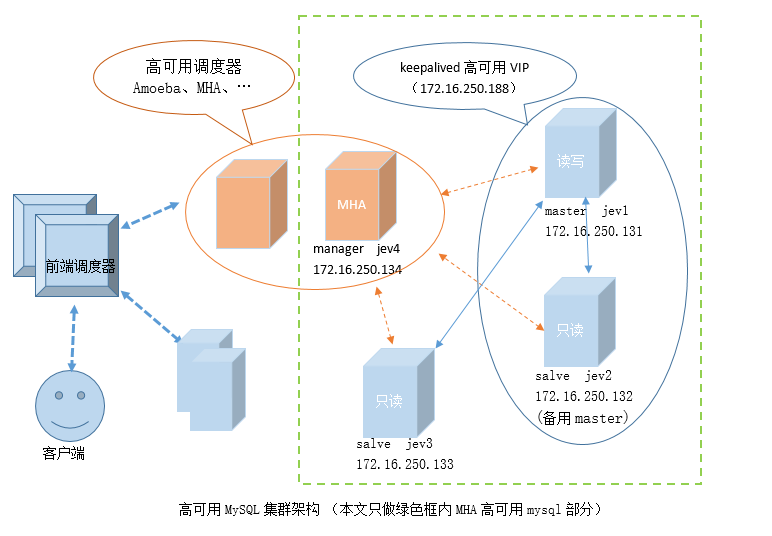

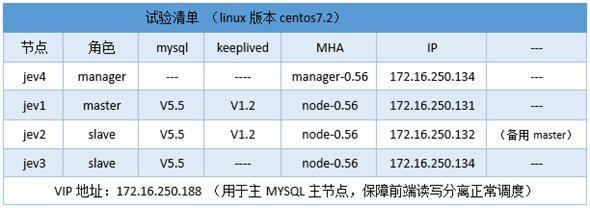

5、試驗清單：
三、部署MHA

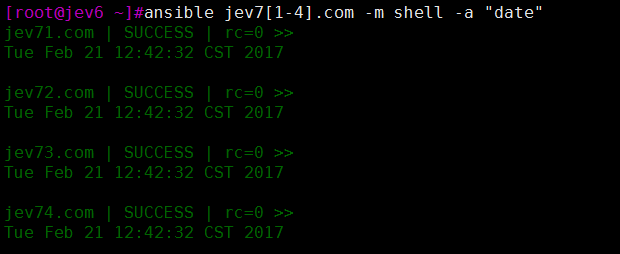

1、確保各節點之間時間同步
[root@jev6 ~]#ansible jev7[1-4].com -m shell -a "date"
2、各個節點之間需通過主機名可互相通信
這里以編輯manager節點為例
[root@jev74 ~]#cat /etc/hosts 127.0.0.1 jev74.com jev74 172.16.250.131 jev71.com jev71 # master 172.16.250.132 jev72.com jev72 # slave 172.16.250.133 jev73.com jev73 # slave 172.16.250.134 jev74.com jev74 # manager
3、各個節點之間需通過主機名可直接SSH登錄
[root@jev74 ~]#ssh-keygen -t rsa -P ''
[root@jev74 ~]#cat .ssh/id_rsa.pub >>.ssh/authorized_keys
[root@jev74 ~]#chmod go= .ssh/authorized_keys
[root@jev74 ~]#for i in {1..3} ;do scp -p .ssh/id_rsa .ssh/authorized_keys root@jev7$i:/root/.ssh/;done
The authenticity of host 'jev71 (172.16.250.131)' can't be established.
ECDSA key fingerprint is e3:11:54:04:58:2d:37:2a:86:50:0b:cf:c3:e9:30:e6.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'jev71,172.16.250.131' (ECDSA) to the list of known hosts.
root@jev71's password:
。 。 。
4、配置mysql集群，確保主從復制正常
#mastet節點配置： [root@jev71 ~]#vim /etc/my.cnf.d/repl.cnf [mysqld] server-id=1 log-bin=master-log relay-log=relay-log #slave節點配置： [root@jev72 ~]#vim /etc/my.cnf.d/repl.cnf [mysqld] server-id=2 log-bin=master-log relay-log=relay-log relay_log_purge=0 read_only=1 skip_name_resolve=1 innodb_file_per_table=1 [root@jev73 ~]#vim /etc/my.cnf.d/repl.cnf [mysqld] server-id=3 log-bin=master-log relay-log=relay-log relay_log_purge=0 read_only=1 skip_name_resolve=1 innodb_file_per_table=1 #啟動mysql： [root@jev71 ~]# systemctl start mariadb && systemctl status mariadb [root@jev72 ~]# systemctl start mariadb && systemctl status mariadb [root@jev73 ~]# systemctl start mariadb && systemctl status mariadb #主節點授權repluser及mhaadmin用戶： [root@jev71 ~]#mysql #記住maser日志狀態 MariaDB [(none)]> show master status ; +-------------------+----------+--------------+------------------+ | File | Position | Binlog_Do_DB | Binlog_Ignore_DB | +-------------------+----------+--------------+------------------+ | master-log.000002 | 245 | | | +-------------------+----------+--------------+------------------+ #授權主從復制用戶-repluser MariaDB [(none)]> grant replication slave,replication client on *.* to 'repluser'@'172.16.250.%' identified by 'replpass' ; #授權MHA管理用戶-mhaadmin MariaDB [(none)]> grant all on *.* to 'mhaadmin'@'172.16.250.%' identified by 'mhapass' ; 從節點啟動復制：master_log_file,master_log_pos 為剛剛在master查看的maser日志狀態； [root@jev72 ~]#mysql #配置主從復制起點 MariaDB [(none)]> change master to master_host='172.16.250.131',master_user='repluser',master_password='replpass',master_log_file='master-log.000002',master_log_pos=245; #查看主從復制情況 MariaDB [(none)]> show grants for 'repluser'@'172.16.250.%'; +----------------------------------------------------------------------------------------------------------------------------------------------------+ | Grants for repluser@172.16.250.% | +----------------------------------------------------------------------------------------------------------------------------------------------------+ | GRANT REPLICATION SLAVE, REPLICATION CLIENT ON *.* TO 'repluser'@'172.16.250.%' IDENTIFIED BY PASSWORD '*D98280F03D0F78162EBDBB9C883FC01395DEA2BF' | +----------------------------------------------------------------------------------------------------------------------------------------------------+ 1 row in set (0.00 sec) [root@jev73 ~]#mysql MariaDB [(none)]> change master to master_host='172.16.250.131',master_user='repluser',master_password='replpass',master_log_file='master-log.000002',master_log_pos=245; MariaDB [(none)]> show grants for 'repluser'@'172.16.250.%'; +----------------------------------------------------------------------------------------------------------------------------------------------------+ | Grants for repluser@172.16.250.% | +----------------------------------------------------------------------------------------------------------------------------------------------------+ | GRANT REPLICATION SLAVE, REPLICATION CLIENT ON *.* TO 'repluser'@'172.16.250.%' IDENTIFIED BY PASSWORD '*D98280F03D0F78162EBDBB9C883FC01395DEA2BF' | +----------------------------------------------------------------------------------------------------------------------------------------------------+ 1 row in set (0.00 sec)
5、配置keepalived高可用VIP
在master及備用master節點安裝keepalived
[root@jev6 ~]#ansible jev7[1:2].com -m yum -a "name=keepalived state=latest"
keepliaved配置文件，下面為keepalived主節點配置，從節點參考備注信息，配置時注意去掉#后面的注釋
[root@jev71 ~]#cat /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
notification_email {
acassen@firewall.loc
}
notification_email_from Alexandre.Cassen@firewall.loc
smtp_server 192.168.200.1
smtp_connect_timeout 30
router_id mysql
vrrp_mcast_group4 224.0.88.88 #組播地址
}
vrrp_script chk_mysqld {
script "killall -0 mysqld && exit 0 || exit 1"
interval 1
weight -5
fall 2
}
vrrp_instance VI_1 {
state BACKUP
interface eno16777736
virtual_router_id 8
priority 100 #權重，jev72上的值要略低于100，但要高于100-weight，本例應為96-99
advert_int 1
nopreempt #不搶占模式，從節點上不必配置此項
authentication {
auth_type PASS
auth_pass mysqlvipass
}
track_script {
chk_mysqld
}
virtual_ipaddress {
172.16.250.188/16 dev eno16777736 #高可用的VIP地址
}
}
啟動keepalived集群，注意啟動順序，先啟動主節點，在啟動從節點
[root@jev71 ~]#systemctl restart keepalived && systemctl status keepalived [root@jev72 ~]#systemctl restart keepalived && systemctl status keepalived
VIP默認綁定在主節點上（jev1），VIP漂移是否正常，可以通過tcpdump抓包跟ip命令查看（具體驗證方式比較簡單，這里就不多說）
[root@jev74 ~]#tcpdump -i eno16777736 -nn host 224.0.88.88 21:31:11.536386 IP 172.16.250.131 > 224.0.88.88: VRRPv2, Advertisement, vrid 8, prio 100, authtype simple, intvl 1s, length 20 [root@jev71 ~]#ip a 1 eno16777736: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000 link/ether 00:0c:29:a1:c8:d1 brd ff:ff:ff:ff:ff:ff inet 172.16.250.131/16 brd 172.16.255.255 scope global eno16777736 valid_lft forever preferred_lft forever inet 172.16.250.188/16 scope global secondary eno16777736 valid_lft forever preferred_lft forever
6、安裝配置MHA
MHA項目地址：https://github.com/yoshinorim/mha4mysql-manager
在主節點上mha4mysql-manager及其mha4mysql-node兩管理軟件
[root@jev74 ~]#yum install mha4mysql-manager-0.56-0.el6.noarch.rpm mha4mysql-node-0.56-0.el6.noarch.rpm -y
在從節點上mha4mysql-node軟件
[root@jev74 ~]#for i in {1..3} ;do scp -p mha4mysql-node-0.56-0.el6.noarch.rpm root@jev7$i:/root/;done
[root@jev71 ~]#yum install mha4mysql-node-0.56-0.el6.noarch.rpm -y
[root@jev72 ~]#yum install mha4mysql-node-0.56-0.el6.noarch.rpm -y
[root@jev73 ~]#yum install mha4mysql-node-0.56-0.el6.noarch.rpm -y
創建配置文件
[root@jev74 ~]#mkdir /etc/masterha/ [root@jev74 ~]#vim !$app1.cnf vim /etc/masterha/app1.cnf [server default] user=mhaadmin password=mhapass manager_workdir=/data/masterha/app1 manager_log=/data/masterha/app1/manager.log remote_workdir=/data/masterha/app1 ssh_user=root repl_user=repluser repl_password=replpass ping_interval=1 [server1] hostname=172.16.250.131 candidate_master=1 [server2] hostname=172.16.250.132 candidate_master=1 [server3] hostname=172.16.250.133 [root@jev74 ~]#mkdir -pv /data/masterha/app1
四、測試MHA集群功能
1、檢查主機間SSH通訊及健康狀態
檢查主機之間ssh通訊狀態，狀態必須為All SSH connection tests passed successfully.才能進行后面操作；
[root@jev74 ~]#masterha_check_ssh --conf=/etc/masterha/app1.cnf 。 。 。 Tue Feb 21 20:05:29 2017 - [info] All SSH connection tests passed successfully.
檢查集群就看狀態，狀態必須為MySQL Replication Health is OK.才能進行后面操作；
[root@jev74 ~]#masterha_check_repl --conf=/etc/masterha/app1.cnf 172.16.250.131(172.16.250.131:3306) (current master) +--172.16.250.132(172.16.250.132:3306) +--172.16.250.133(172.16.250.133:3306) 。 。 。 MySQL Replication Health is OK.
2、啟動MHA及驗證master是否能正常切換
啟動masterha_manager
#以進程方式運行masterha_manager
[root@jev74 ~]#nohup masterha_manager --conf=/etc/masterha/app1.cnf >/data/masterha/app1/manager.log 2>&1 & #查看masterha_manager進程是否在后臺正常運行 [root@jev74 ~]#ps aux |grep masterha_manager root 12264 0.1 2.1 298672 21512 pts/2 S 21:13 0:00 perl /usr/bin/masterha_manager -conf=/etc/mas terha/app1.cnfroot 12532 0.0 0.0 112644 956 pts/2 S+ 21:17 0:00 grep --color=auto masterha_manager #查看masterha_manager運行狀態（app1集群） [root@jev74 ~]#masterha_check_status --conf=/etc/masterha/app1.cnf app1 (pid:12264) is running(0:PING_OK), master:172.16.250.131
制造故障，關閉master（jev1）的mysql進程
[root@jev71 ~]#systemctl stop mariadb && systemctl status mariadb
查看masterha_manager的日志信息，可以發現jev2成為新的master節點
[root@jev74 ~]#tail -15 /data/masterha/app1/manager.log app1: MySQL Master failover 172.16.250.131(172.16.250.131:3306) to 172.16.250.132(172.16.250.132:3306) succeeded Master 172.16.250.131(172.16.250.131:3306) is down! Check MHA Manager logs at jev74.com:/data/masterha/app1/manager.log for details. Started automated(non-interactive) failover. The latest slave 172.16.250.132(172.16.250.132:3306) has all relay logs for recovery. Selected 172.16.250.132(172.16.250.132:3306) as a new master. 172.16.250.132(172.16.250.132:3306): OK: Applying all logs succeeded. 172.16.250.133(172.16.250.133:3306): This host has the latest relay log events. Generating relay diff files from the latest slave succeeded. 172.16.250.133(172.16.250.133:3306): OK: Applying all logs succeeded. Slave started, replicating from 172.16.250.132(172.16.250.132:3306)172.16.250.132(172.16.250.132:3306): Resetting slave info succeeded. Master failover to 172.16.250.132(172.16.250.132:3306) completed successfully.
查看VIP是否轉移到了jev2（新master）上面
[root@jev72 ~]#ip a 1 eno16777736: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000 link/ether 00:0c:29:a1:c8:d2 brd ff:ff:ff:ff:ff:ff inet 172.16.250.132/16 brd 172.16.255.255 scope global eno16777736 valid_lft forever preferred_lft forever inet 172.16.250.188/16 scope global secondary eno16777736 valid_lft forever preferred_lft forever
故障轉移后masterha會自動關閉，有利于在生產環境排除問題后再手動啟動；
[root@jev74 ~]#masterha_check_status --conf=/etc/masterha/app1.cnf app1 is stopped(2:NOT_RUNNING).
3、注意事項
本實驗將VIP設定為非搶占模式，就是防止在故障master修復期間，故障master節點將新master的VIP搶奪回去，導致整個集群無法正常工作；
masterha默認不允許短時間內頻繁切換master節點，故切換之后需要刪除手工刪除/data/masterha/app1/app1.failover.complete，才能進行第二次測試
故障master修復后（或啟動新節點），需要基于新的master節點的備份恢復數據，將該節點配置為slave即可，需將IP配置為之前故障master的ip或在app1.cnf中定義；再次啟動manager進程集群健康狀態即可；
如需將修復的節點，重新啟動為master節點，需手動切換master同時將，將目前已有vip節點的keepalived進程殺死，讓VIP漂移回去。（也可以通過修改定義master_ip_failover腳本實現VIP漂移）
[root@jev74 ~]# masterha_master_switch --master_state=dead --conf=/etc/masterha/app1.cnf --dead_master_host=172.16.250.132 --new_master_host =172.16.250.132
基于MHA的mysql高可用集群搭建介紹到此；關于master修復詳細見【MHA–master在線修復】；
