實驗：配置靜態路由1
IP地址規劃如下：
注意，環境準備：
1、MAC地址不要有沖突，如果是復制的虛擬機，對于centos6需刪除網卡定義文件rm -f /etc/udev/rules.d/70-persistent-net.rules
2、清空防火墻iptables -F（查看：iptables -vnL）
3、啟用IP轉發功能：echo 1 > /proc/sys/net/ipv4/ip_forward
4、關閉服務：service NetworkManager stop

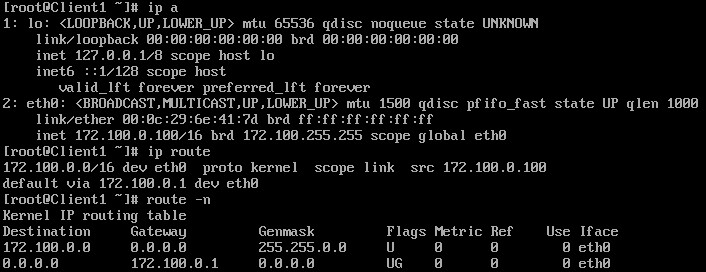

主機A：
ifconfig eth0 172.100.0.100/16 up #配置接口IP
route add default gw 172.100.0.1 #配置默認網關
主機B：
ifconfig ens33 192.168.0.100/24 up #配置接口IP
route add default gw 192.168.0.1 #配置默認網關
路由R1：
#配置接口IP
ifconfig eth0 172.100.0.1/16
ifconfig eth1 10.0.0.1/8
#配置路由表
route add -net 192.168.0.0/24 gw 10.0.0.2
路由R2：
#配置接口IP
ifconfig eth0 192.168.0.1/24
ifconfig eth1 10.0.0.2/8
#配置路由表
route add -net 172.100.0.0/16 gw 10.0.0.1
驗證：
mtr traceroute
附錄：
ifconfig命令:
【ifconfig -h】
Usage:
ifconfig [-a] [-v] [-s] <interface> [[<AF>] <address>]
[add <address>[/<prefixlen>]]
[del <address>[/<prefixlen>]]
[[-]broadcast [<address>]] [[-]pointopoint [<address>]]
[netmask <address>] [dstaddr <address>] [tunnel <address>]
[outfill <NN>] [keepalive <NN>]
[hw <HW> <address>] [mtu <NN>]
[[-]trailers] [[-]arp] [[-]allmulti]
[multicast] [[-]promisc]
[mem_start <NN>] [io_addr <NN>] [irq <NN>] [media <type>]
[txqueuelen <NN>]
[[-]dynamic]
[up|down] …
<HW>=Hardware Type.
List of possible hardware types:
loop (Local Loopback) slip (Serial Line IP) cslip (VJ Serial Line IP)
slip6 (6-bit Serial Line IP) cslip6 (VJ 6-bit Serial Line IP) adaptive (Adaptive Serial Line IP)
ash (Ash) ether (Ethernet) ax25 (AMPR AX.25)
netrom (AMPR NET/ROM) rose (AMPR ROSE) tunnel (IPIP Tunnel)
ppp (Point-to-Point Protocol) hdlc ((Cisco)-HDLC) lapb (LAPB)
arcnet (ARCnet) dlci (Frame Relay DLCI) frad (Frame Relay Access Device)
sit (IPv6-in-IPv4) fddi (Fiber Distributed Data Interface) hippi (HIPPI)
irda (IrLAP) ec (Econet) x25 (generic X.25)
infiniband (InfiniBand) eui64 (Generic EUI-64)
<AF>=Address family. Default: inet
List of possible address families:
unix (UNIX Domain) inet (DARPA Internet) inet6 (IPv6)
ax25 (AMPR AX.25) netrom (AMPR NET/ROM) rose (AMPR ROSE)
ipx (Novell IPX) ddp (Appletalk DDP) ec (Econet)
ash (Ash) x25 (CCITT X.25)
示例：
# ifconfig -a
# ifconfig <interface> [up|down] 啟用|禁用網卡接口，激活|停用，activate|deactivate
ifdown|ifup <interface> 啟用|禁用網卡接口，其實是刪除了IP，需要有ifcfg-<interface>配置文件
ifconfig <interface> [aftype] options | <address> …
# ifconfig <interface> <address>[/<prefixlen>] [up|down]
# ifconfig <interface> <address> [netmask <address>] [up|down]
注意：立即生效；
啟用混雜模式：[-]promisc
查看路由命令：
route -n
netstat -nr
ip route
route命令:路由管理
【route –help】
Usage: route [-nNvee] [-FC] [<AF>] List kernel routing tables
route [-v] [-FC] {add|del|flush} … Modify routing table for AF.
route {-h|–help} [<AF>] Detailed usage syntax for specified AF.
route {-V|–version} Display version/author and exit.
-v, –verbose be verbose
-n, –numeric don’t resolve names
-e, –extend display other/more information
-F, –fib display Forwarding Information Base (default)
-C, –cache display routing cache instead of FIB
添加：route add
route [-vF] add {-host|-net} Target[/prefix] [gw Gw] [metric M]
[netmask N] [mss Mss] [window W] [irtt I]
[mod] [dyn] [reinstate] [[dev] If]
route [-vF] add {-host|-net} Target[/prefix] [metric M] reject
示例：
目標：192.168.1.3 網關：172.16.0.1
# route add -host 192.168.1.3 gw 172.16.0.1 dev eth0
目標：192.168.0.0 網關：172.16.0.1
# route add -net 192.168.0.0 netmask 255.255.255.0 gw 172.16.0.1 dev eth0
# route add -net 192.168.0.0/24 gw 172.16.0.1 dev eth0
默認路由，網關：172.16.0.1
# route add -net 0.0.0.0 netmask 0.0.0.0 gw 172.16.0.1
# route add default gw 172.16.0.1
刪除：route del
route [-vF] del {-host|-net} Target[/prefix] [gw Gw] [metric M] [[dev] If]
示例：
目標：192.168.1.3 網關：172.16.0.1
# route del -host 192.168.1.3
目標：192.168.0.0 網關：172.16.0.1
# route del -net 192.168.0.0 netmask 255.255.255.0
